NanostrobeX Drop Watcher mounted on a micro dispenser.

High Precision Dropwatcher

High Precision Dropwatching

UltiStrobe

The UltiStrobe is a Universal High-Precision Dropwatcher for contactless Dispensing Systems. Intuitive to use, flexible and High-Performance.

The UltiStrobe is a universal high-precision dropwatcher
for contactless dispensing systems.
Intuitive to use, flexible and high-performance.

The UltiStrobe is a Universal High-Precision Dropwatcher for contactless Dispensing Systems. Intuitive to use, flexible and High-Performance.

Suited for a wide range of industries

Our camera systems are extremely universal and can be adapted for many other applications. If your industry is not listed here, please contact us to discuss how our technology can meet your specific requirements.

Biotech

Precision application of laboratory samples onto analysis substrates.

Biotech

Precision application of laboratory samples onto analysis substrates.

Pharmaceutics

Precise dosing of ingredients in pharmaceutical formulation

Pharmaceutics

Precise dosing of ingredients in pharmaceutical formulation

Chemistry

Controlled non-contact dosing and mixing of chemical liquids.

Chemistry

Controlled non-contact dosing and mixing of chemical liquids.

Industrial manufacturing

application of adhesives, underfill, solder paste, ... and much more.

What Sets Our System Apart?

UltiStrobe Dropwatcher Advantages

The UltiStrobe is suitable for monitoring stationary dispensing systems. Thanks to the flexible camera head and intelligent design, the dropwatcher can be easily integrated almost in any location. Whether in the laboratory or in production, the UltiStrobe has many advantages and helps you to save time and money while improving the quality of your dosing.

Accelerating Visibility

It can be so simple! The UltiStrobe makes analyzing dosing processes fun again. You can see your dosing process on the monitor in seconds. No installations, no complicated software - plug and play and self-explanatory.

Flexibility

Every liquid and every dosing requirement is different. The UltiStrobe can be flexibly adapted and is prepared for any challenge. Whether magnification, resolution or positioning - no problem for the UltiStrobe.

Sustainability

The better you know your dosing process, the easier it is for you to understand deviations and influences. This reduces the scrap rate, which has a positive effect on sustainability and significantly increases the efficiency and effectiveness of production.

Usability

The UltiStrobe is designed for plug-and-play, both electrically and mechanically. The software is intuitive to use and runs on the device itself, so the camera can be operated from any device without installation.

Flexible Dropwatcher Lenses
by Application

Different liquids, situations and requirements. We have two standardized connections for lenses to provide maximum flexibility.
You need support for the perfect lens for your application? We look forward to helping you!

Lens

Magnification

Field of View (FOV) [mm]

Resolution [µm/px]

Working Distance

Thread

S-1.0

1.0

3.9 x 4.45

2.79

15 mm

S-Mount

S-2.0

2.0

1.95 x 2.2

1.39

15 mm

S-Mount

C-0.5

0.5

7.8 x 8.9

5.58

75 mm

C-Mount

C-1.0

1.0

3.9 x 4.45

2.79

69 mm

C-Mount

C-2.0

2.0

1.95 x 2.2

1.39

65 mm

C-Mount

Get full data sheet

Precision-Drop-Analysis

The 3D drop monitoring enables extremely precise determination of the dispensing volume, which cannot be reached with conventional cameras. At the same time, even hidden satellite droplets are reliably detected. The 3D detection also enables the evaluation of the direction of flight and the expected impact position.

Precision-Drop-Analysis

Web-GUI

The AnalysisUnit of the UltiStrobe has an integrated web server for intuitive process settings. This is used for evaluation functions, evaluation criteria or statistical analyses. The GPIOs or a database connection can also be set. No installation or extensive training is required. All you need for control is a standard browser. The dosing process becomes visible within a few minutes without you having to adapt your electrical wiring.

Web-GUI

Monitoring result, where the drop volume is given in precise nanoliters

Video Analysis

One video shows more than 1000 images. With the virtual video function, not only the snapshot is visible, but the entire dosing performance can be analyzed. Formation, satellites, demolition, dynamic, spattering and much more. Simply enter the desired time range and resolution and the video is ready to go.

Video Analysis

Different Nozzle Drop behavior that can be monitored

Nozzle Monitoring

Liquid residues on the nozzle have a negative effect on the dispensing quality, e.g. by changing the droplet flight direction or the droplet volume. With the UltiStrobe, the nozzle condition can be monitored in real time. Cleaning as required saves valuable process time and reduces scrap at the same time.

Nozzle Monitoring

Accessoires

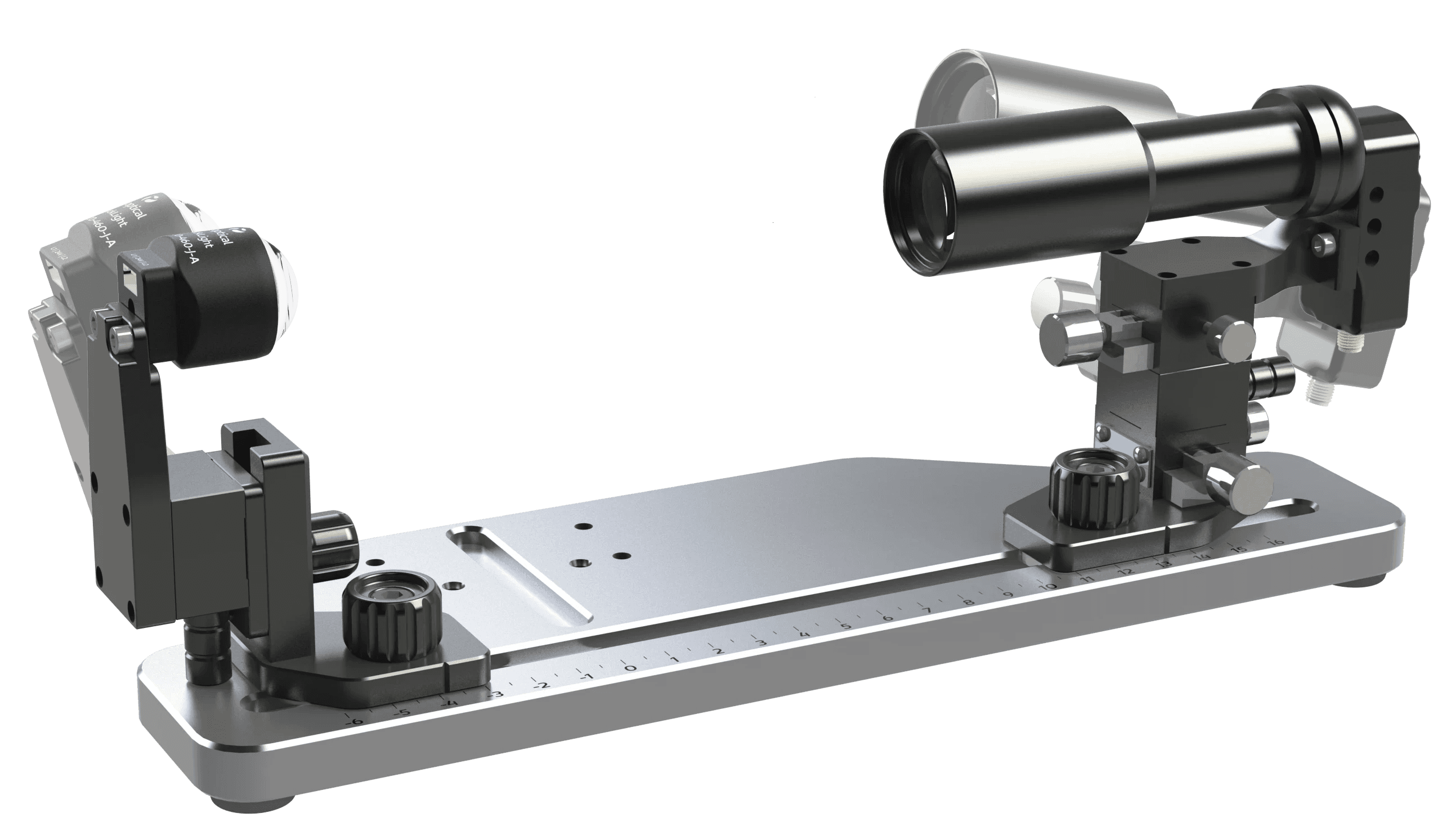

LabStand

The robust aluminum slotted plate for any desk in the office, laboratory or production area. The dispensing system and camera can be flexibly mounted and precisely adjusted with an X/Y/Z table.

LabStand

The robust aluminum slotted plate for any desk in the office, laboratory or production area. The dispensing system and camera can be flexibly mounted and precisely adjusted with an X/Y/Z table.

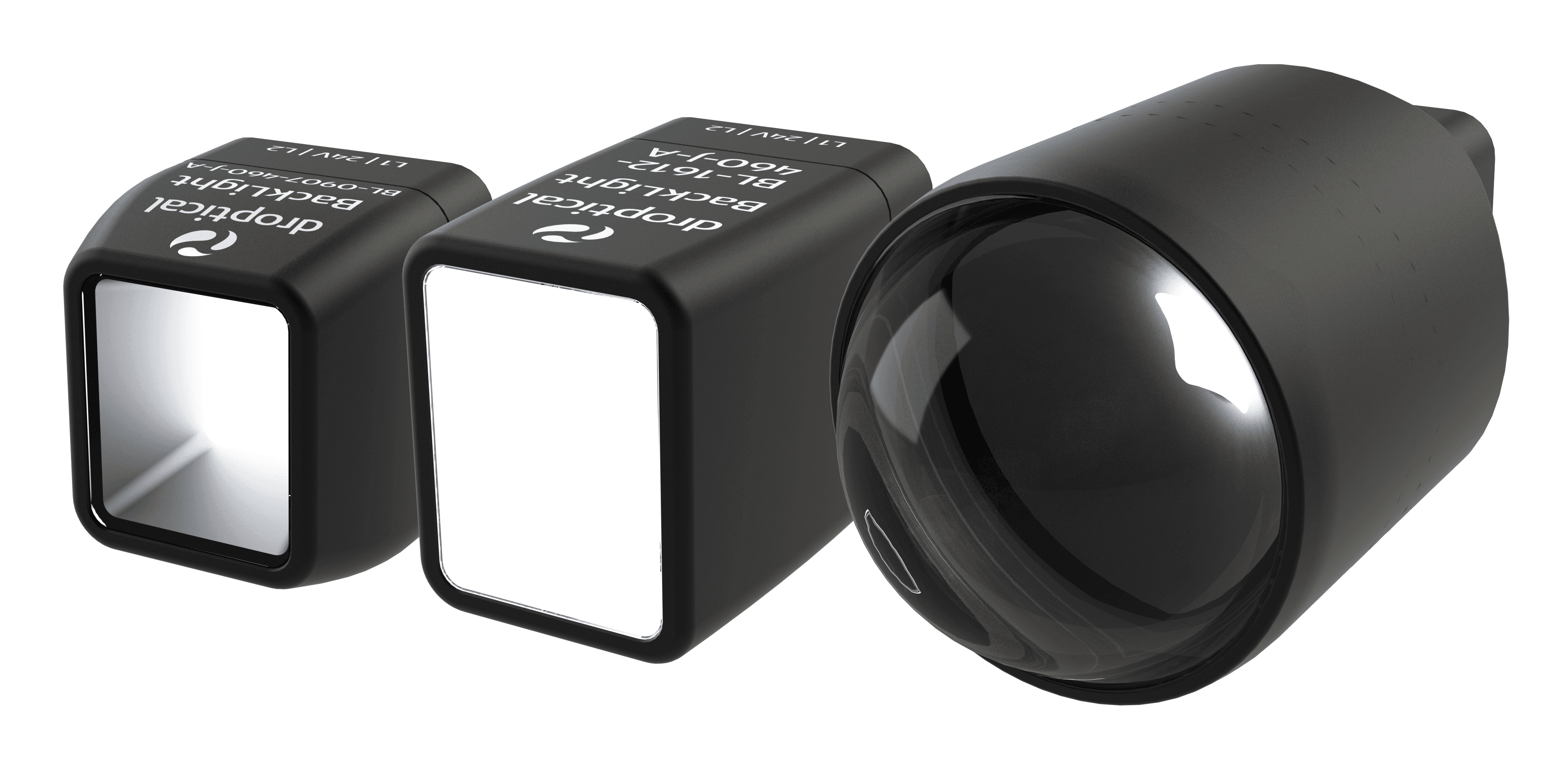

Backlight

The standard backlight is ideal for common dispensing applications. For particularly small and fast drops, we recommend the high-power backlight. Exchangeable without tools.

Backlight

The standard backlight is ideal for common dispensing applications. For particularly small and fast drops, we recommend the high-power backlight. Exchangeable without tools.

Adapter for the calibration of the drop watcher

GaugeAdapter

Calibration made easy. With the plug-in adapter for calibration, the calibration value of the camera can be checked and adjusted in no time at all.

GaugeAdapter

Calibration made easy. With the plug-in adapter for calibration, the calibration value of the camera can be checked and adjusted in no time at all.

TriggerAdapter

Plug'n'Play Connector. With the TriggerAdapter, the existing wiring does not need to be changed. It is plugged between the dosing controller and the connection cable and the UltiStrobe is immediately ready for use.

TriggerAdapter

FAQ

UltiStrobe

Which fluids can be detected with the UltiStrobe?

All common liquids are suitable. From colourless fluids such as glycerine to adhesives and solder pastes, all liquids are reliably detected. All liquids tested so far have been reliably detected.

Which fluids can be detected with the UltiStrobe?

All common liquids are suitable. From colourless fluids such as glycerine to adhesives and solder pastes, all liquids are reliably detected. All liquids tested so far have been reliably detected.
